Smart Face Recognition Access Control Board with 128GB ROM + 4GB RAM
Access Control Board description:
1. The F4 board is powered by Rockchip RK3399, a low-power, high-performance processor that integrates dual-core Cortex-A72 1.8GHz and quad-core Cortex-A53 1.4GHz.
2. The ARM Mali-T860 GPU supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, and DX11, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos.

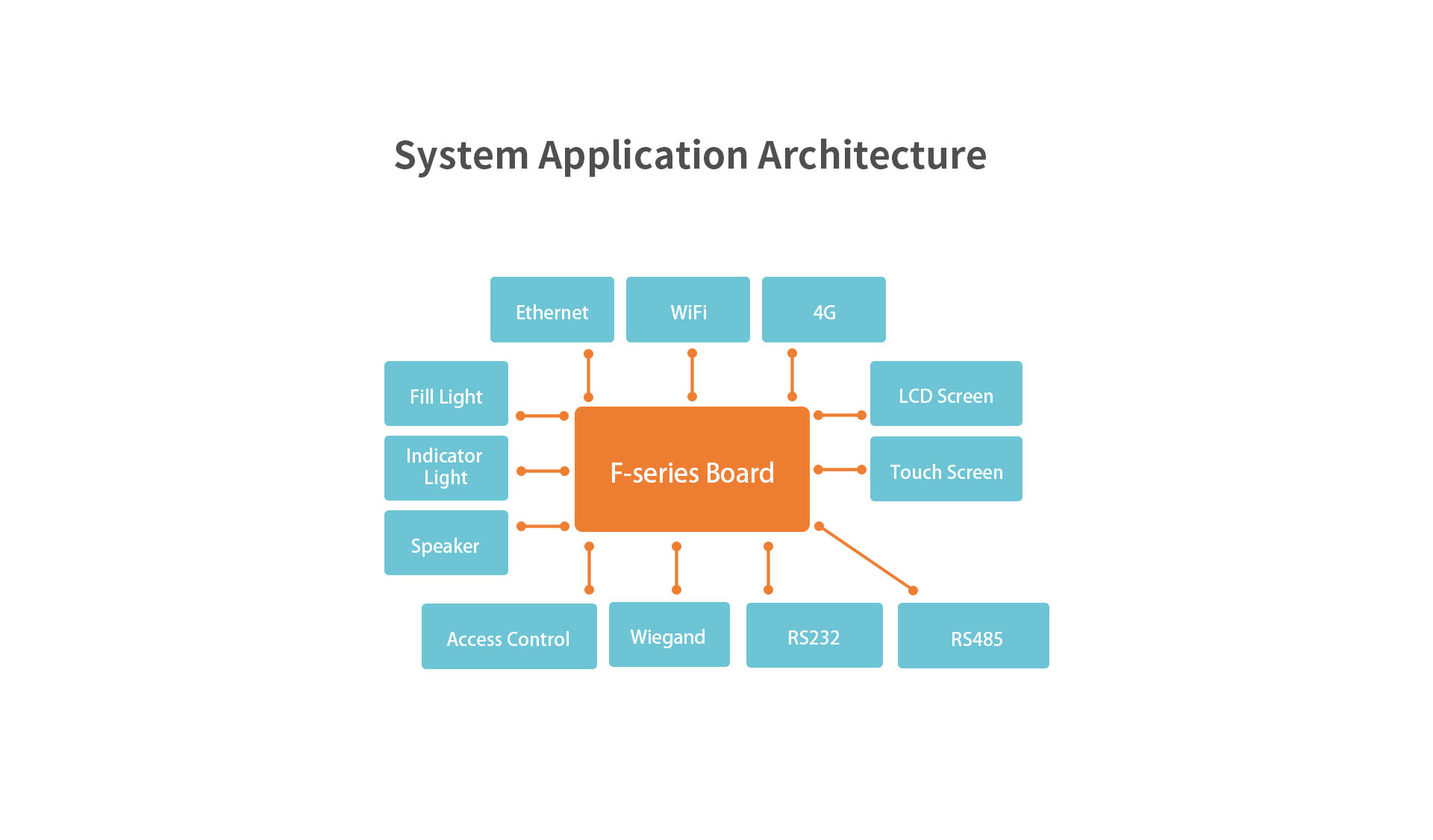

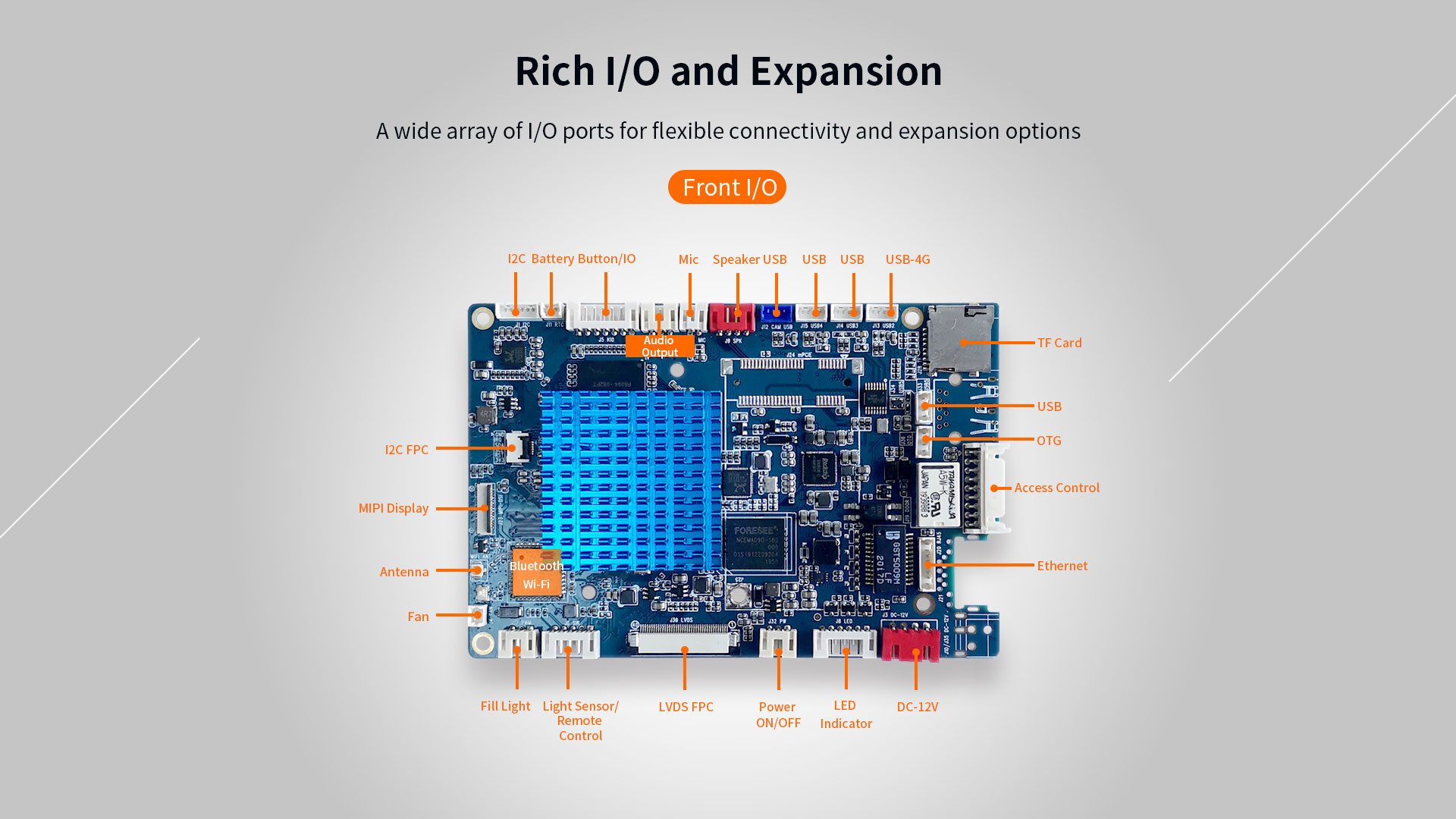

3. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.

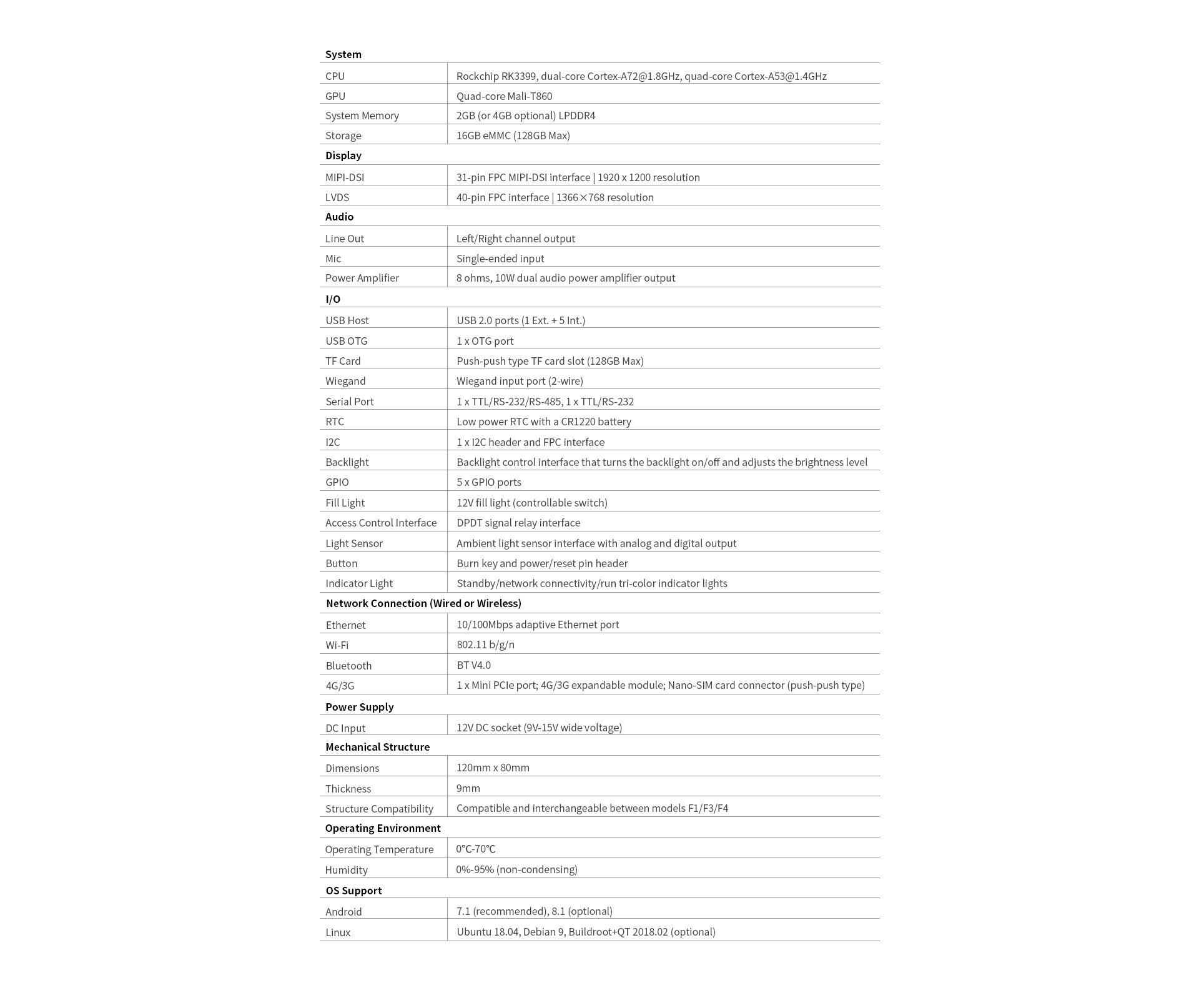

Access Control Board parameters:
Keyword: | Access Control Board | CPU: | Rockchip RK3399, dual-core Cortex-A72@1.8GHz, quad-core Cortex-A53@1.4GHz |
|---|---|---|---|
System Memory: | 2GB (or 4GB optional) LPDDR4 | Storage: | 16GB eMMC (128GB Max) |
MIPI-DSI: | 31-pin FPC MIPI-DSI interface/ 1920x1200 resolution | LVDS: | 40-pin FPC interface/ 1366×768 resolution |
USB Host: | USB 2.0 ports (1 Ext.+5 Int.) | Audio Line Out: | Lef/Right channel output |
|
|
