| Model Number : | F1-i Board |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100+pcs+day |
| Brand Name : | Shi Zun |
Smart Face Recognition Access Control F1-i Board WIFI Bluetooth
Module

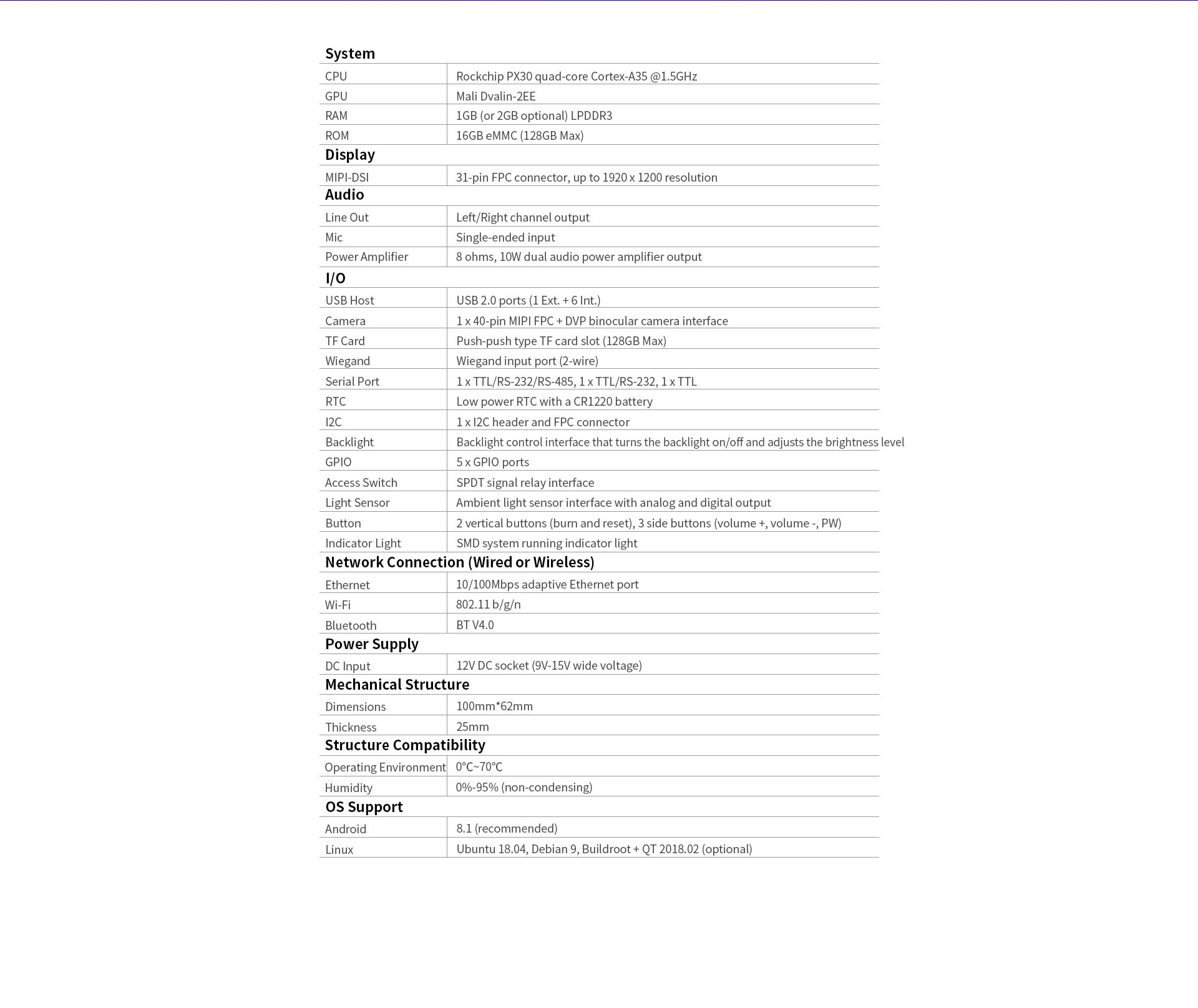

F1-i Board Parameters:
Keyword: | Access Control F1-i Board | CPU: | Rockchip PX30 quad-core Cortex-A35 @1.5GHz |
|---|---|---|---|
RAM: | 1GB (or 2GB optional) LPDDR3 | ROM: | 16GB eMMC (128GB Max) |
USB Host: | USB 2.0 ports (1 Ext.+6 Int.) | Camera: | 1x 40-pin MIPIFPC+ DVP binocular camera interface |
Android: | 8.1 (recommended) | Serial Port: | 1xTTL/RS-232/RS-485, 1xTTL/RS-232, 1xTTL |
F1-i Board Description:
The F1i board is powered by Rockchip PX30 quad-core Cortex-A35 processor, with a maximum clock speed of 1.5GHz. The integrated Mali Dvalin-2EE GPU supports OpenGL ES3.2, Vulkan 1.0, and OpenCL 2.0, enabling a perfectly smooth hardware decoding of 1080p resolution videos. With a variety of onboard display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.
|
|
