| Brand Name : | Shi Zun |
| Model Number : | ASK872EG |
| Price : | Negotiable |
| Supply Ability : | 100+pcs+day |
| Delivery Time : | 10 working days |
| Payment Terms : | T/T |

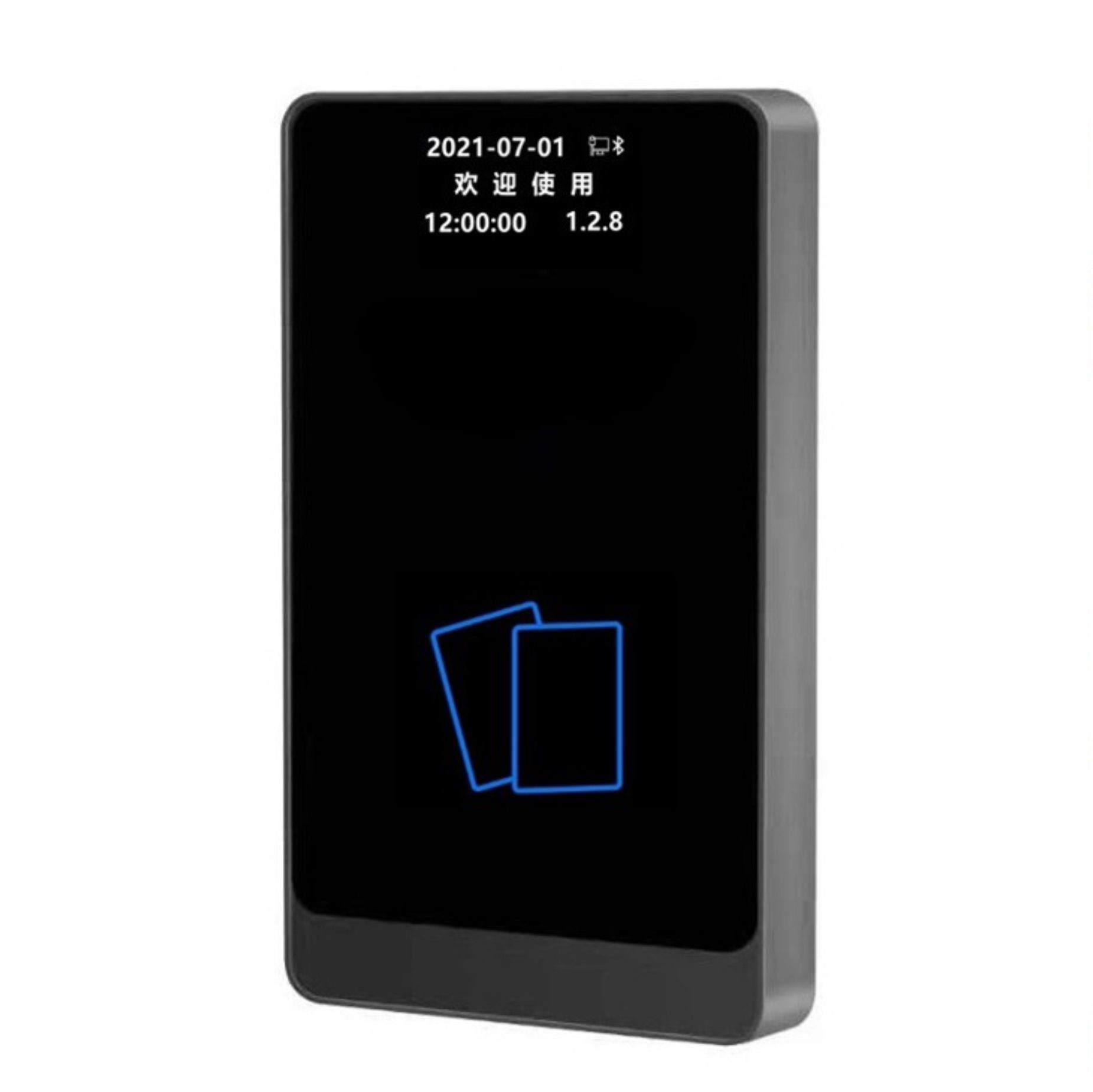

ASK872EG Card Reader Access Control Machine User Storage 60,000 users Bluetooth Version BLE 4.1
ASK872EG Card Reader Access Control Machine Description:
ASK872EG Card Reader Access Control Machine Parameters:
| Processor | Xtensa 32-bit LX6 Dual-Core Processor, Main Frequency 600 MIPS |
| Operating System | FreeRTOS Embedded System |
| Identification Support | Bluetooth, IC card, CPU card, NFC, touch password |
| Protocol Support | HTTP, MQTT, TCP/IP |
| External Interfaces | Dry Contact Output, Exit Button Input, Door Sensor Input |
| 4G Communication | LTE Cat.1, TDD (B34/B38/B39/B40/B41) + FDD (B1/B3/B5/B8) |
| Interaction Modes | Buzzer, OLED display, LED backlight |
| Input Voltage | DC 12V / 500mA (supports 5-30V) |
| Product Dimensions | 108* 63.8* 13 (mm) |
| Product Weight | 110g |
| Material | Tempered Glass Panel / ABS Casing / Waterproof |

|
