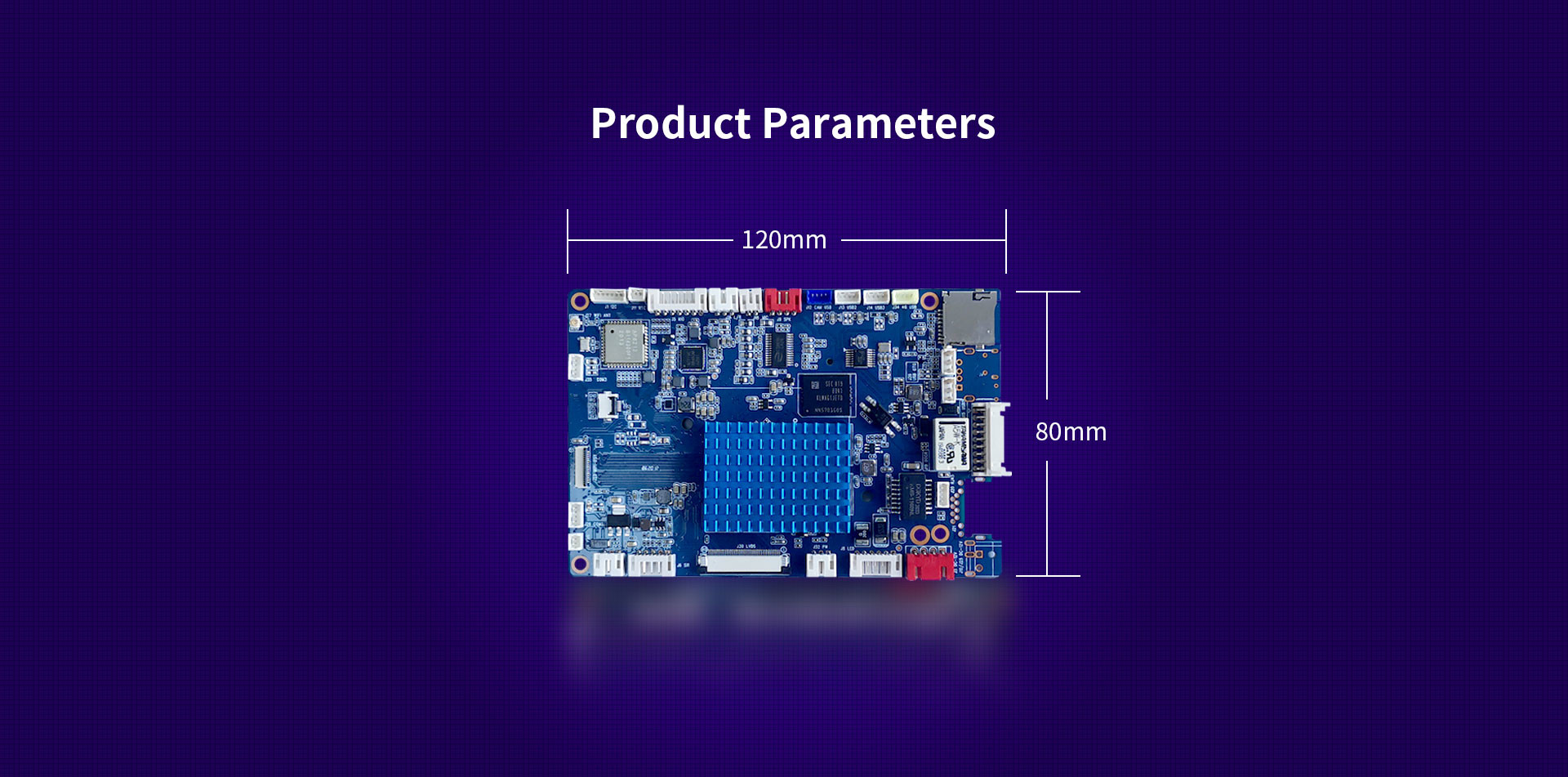

Android 5.1 System Smart Face Recognition Access Control Board Rockchip RK3288
Smart Face Recognition Access Control Board Description:
1. The F3 board is powered by Rockchip RK3288 quad-core Cortex-A17 processor, with a maximum clock speed of 1.8GHz.
2. The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos.
3. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the security and access control sector.
Keyword: | Access Control Board | CPU: | Rockchip RK3288 quad-core Cortex-A17@1.8GHz |
|---|---|---|---|
System Memory: | 2GB (or 4GB optional) LPDDR3 | Storage: | 16GB eMMC (128GB Max) |
MIPI-DSI: | 31-pin FPC MIPI-DSI interface/ 1920x 1200 resolution | LVDS: | 40-pin FPC LVDS interface/ 1366* 768 resolution |
Android: | 5.1(recommended), 6.0/ 7.1(optional) | Audio Line Out: | Left/ Right channel output |
|
|
