K3 Smart Vending Machine Board Rockchip RK3288 Wi-Fi 802.11 b/g/n and Bluetooth 4.0

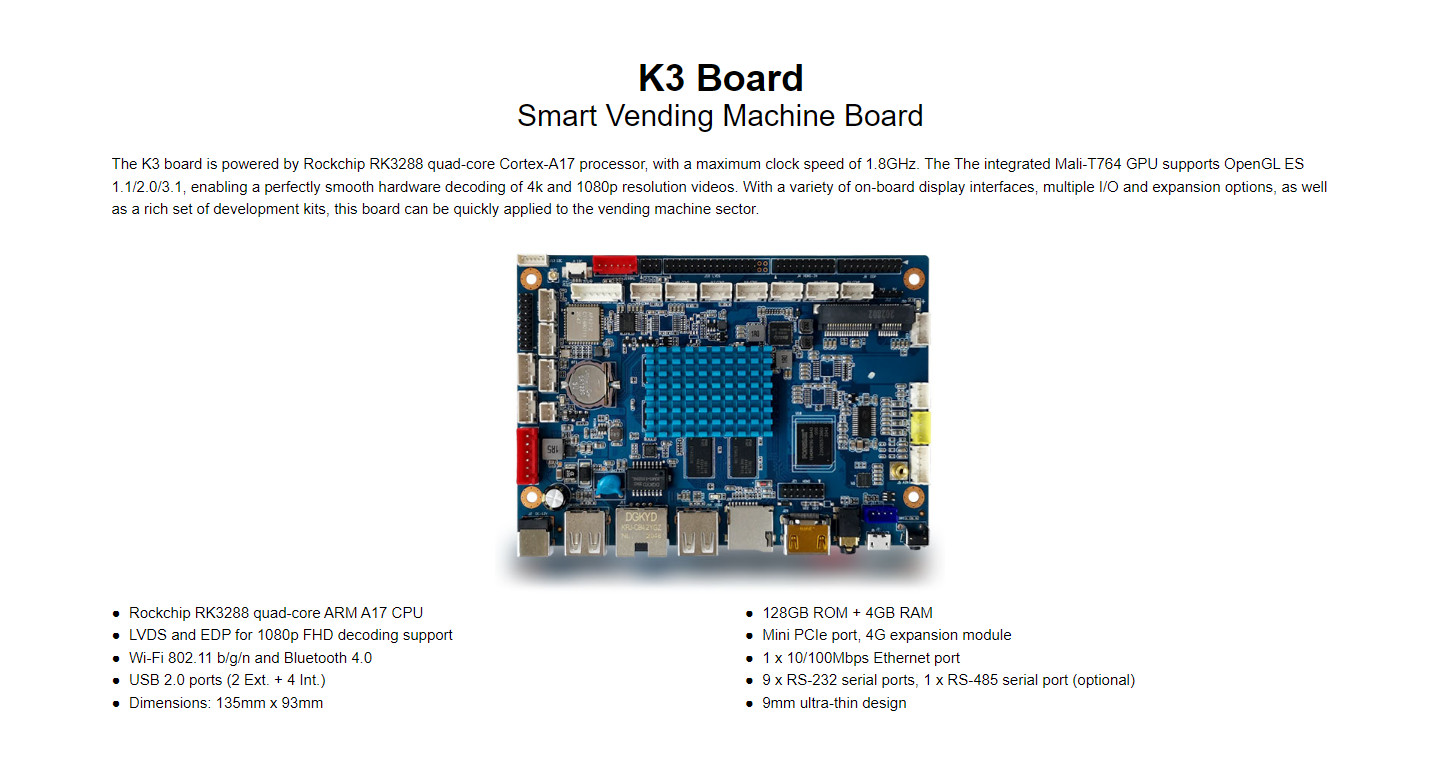

K3 Smart Vending Machine Board Description:
The K3 board is powered by Rockchip RK3288 quad-core Cortex-A17 processor, with a maximum clock speed of 1.8GHz. The The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the vending machine sector.

Smart Vending Machine Board Parameters:

K3 Smart Vending Machine Board Features:

1. Processor: The K3 smart vending machine board is equipped with a Rockchip RK3288 quad-core Cortex-A17 processor, with a maximum clock speed of 1.8GHz, offering robust computing power.

2. Graphics Processing: The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1 and is capable of hardware decoding 4K and 1080p resolution videos, ensuring smooth display performance.

3. Display Interface: Supports LVDS and EDP for 1080p FHD decoding support, allowing connection to various display devices.

4. Wireless Connectivity: Features Wi-Fi 802.11 b/g/n and Bluetooth 4.0 for wireless network connections and data transfer.

5. USB Ports: Provides 2 external and 4 internal USB 2.0 ports for easy connection to various external devices.

6. Storage and Memory: Equipped with 128GB ROM and 4GB RAM, offering ample storage space and operational memory.

7. Expansion Capability: Includes a Mini PCIe port and a 4G expansion module, enhancing the board's expandability.

8. Network Interface: Offers 1 10/100Mbps Ethernet port for wired network connections.

9. Serial Communication Ports: Provides 9 RS-232 serial ports and 1 optional RS-485 serial port for easy connection to various serial devices.

10. Size Design: The motherboard has dimensions of 135mm x 93mm, designed compactly for easy integration into vending machines.

11. Ultra-thin Design: The motherboard features an ultra-thin 9mm design, saving space and facilitating easy installation.
