| Brand Name : | Shi Zun |
| Model Number : | K0 Board |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100+pcs+day |
K0 Smart Vending Machine Board Rockchip RK3288 Wi-Fi 802.11 b/g/n
and Bluetooth 4.0

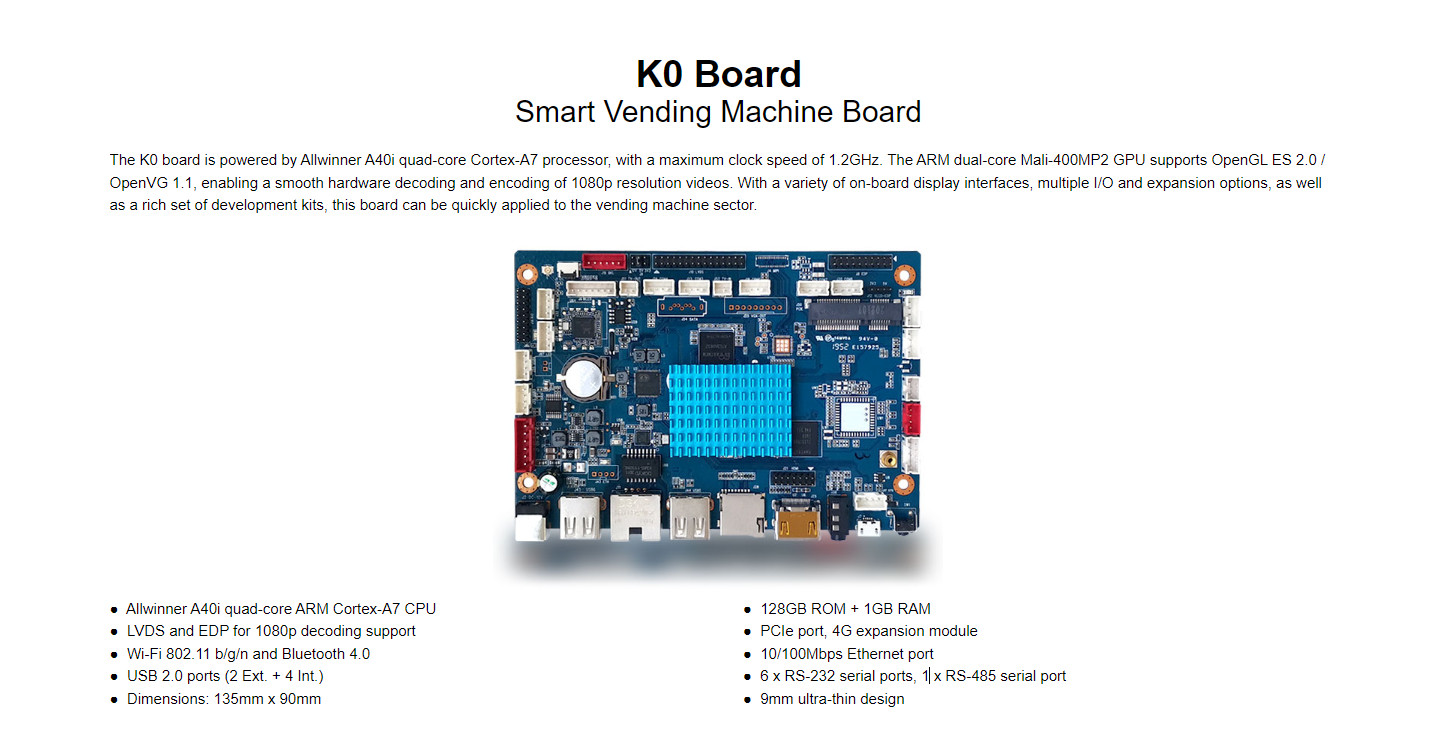

K0 Smart Vending Machine Board Description:
The K0 board is powered by Allwinner A40i quad-core Cortex-A7
processor, with a maximum clock speed of 1.2GHz. The ARM dual-core
Mali-400MP2 GPU supports OpenGL ES 2.0 / OpenVG 1.1, enabling a
smooth hardware decoding and encoding of 1080p resolution videos.

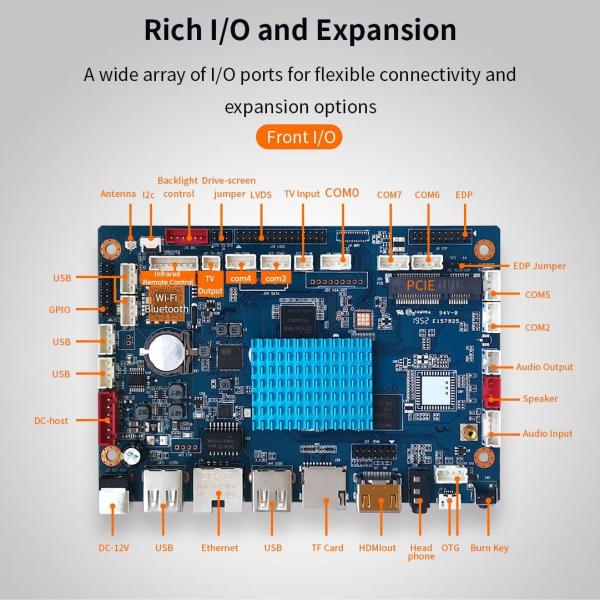

With a variety of on-board display interfaces, multiple I/O and
expansion options, as well as a rich set of development kits, this
board can be quickly applied to the vending machine sector.

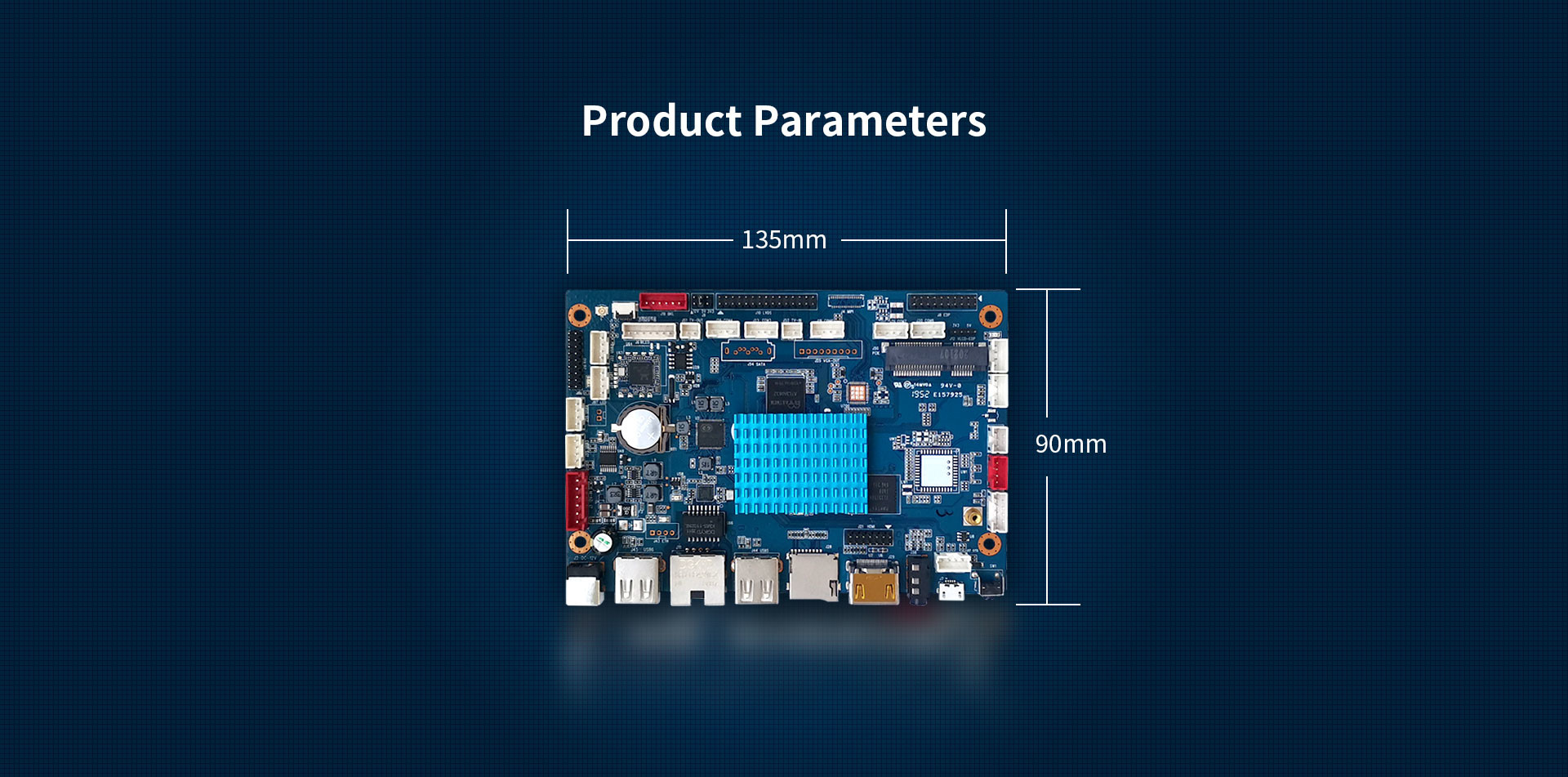

Smart Vending Machine Board Parameters:
Keyword: | Smart Vending Machine Board | CPU: | Allwinner A40i quad-core Cortex-A7@1.2GHz |
|---|---|---|---|
System Memory: | 1GB LPDDR3 | Storage: | 8GB eMMC (128GB Max) |
USB Host: | USB 2.0 ports (2 Ext. + 4 Int.) | HDMI: | HDMI 1.4, up to 1080p resolution |
| LVDS: | Dual-LVDS interface, up to 1080p resolution | MIPI: | 31-pin FPC MIPI-DSI interface/ 1920x1200 resolution |
| Power Amplifier: | 8 ohms, 6W dual audio power amplifier output | RTC: | Low power RTC with a CR1220 battery |
| Backlight: | Backlight control interface that turns the backlight on/off and adjusts the brightness level | GPIO: | 8x GPIO ports |
Android: | 7.1 (recommended) | Serial Port: | 1xTTL/RS-485,6x TTL/RS-232 |
|
|
