M1 Smart Commercial Display Board USB 2.0 ports (2 Ext. + 4 Int.) Push-push type TF card slot (32GB Max)
M1 Smart Commercial Display Board Description:
The M1 board is powered by Rockchip RK3188 processor and integrated quad-core Cortex-A9 processor, with dominant frequency up to 1.6GHz. The integrated Mali400 MP4 graphics processing unit (GPU) supports OpenGL ES1.1/2.0 and can achieve 1080P hardware video decoding and encoding. Various onboard display and expansion interfaces are available for secondary development of openAPI SDK, which can be quickly used in various industries.

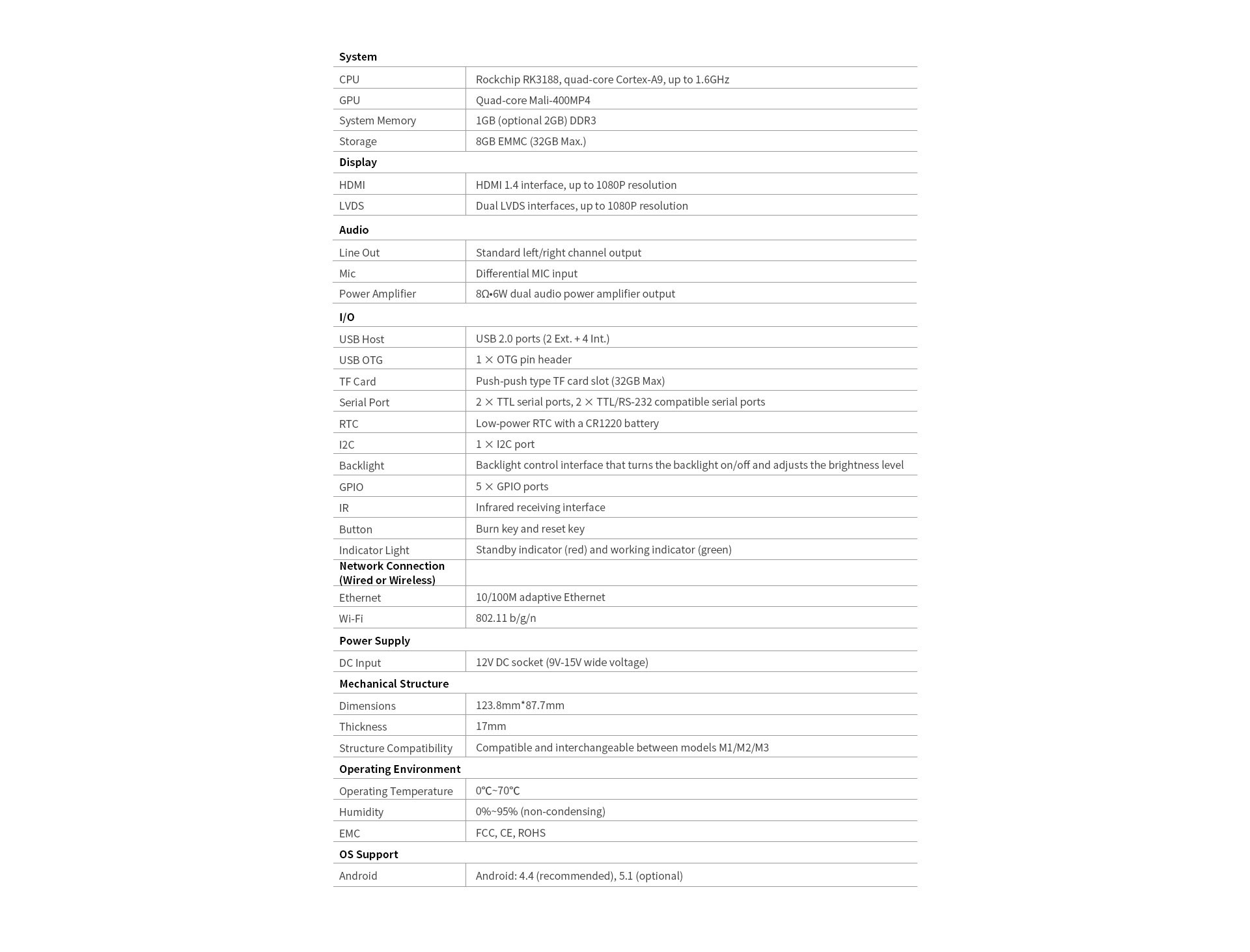

M1 Smart Commercial Display Board Parameters:
Keyword: | Smart Commercial Display Board | CPU: | Rockchip RK3188, quad-core Cortex-A9, up to 1.6GHz |
|---|---|---|---|
| GPU: | Quad-core Mali-400MP4 | System Memory: | 31GB (optional 2GB) DDR3 |
Storage: | 8GB EMMC (32GB Max.) | HDMI: | HDMI 1.4 interface, up to 1080P resolution |
USB Host: | USB 2.0 ports (2 Ext. + 4 Int.) | Serial Port: | 2x TTL serial ports, 2x TTL/RS-232 compatible serial ports |
Indicator Light: | Standby indicator (red) and working indicator (green) | Android: | Android: 4.4 (recommended), 5.1 (optional) |
M1 Smart Commercial Display Board Features:

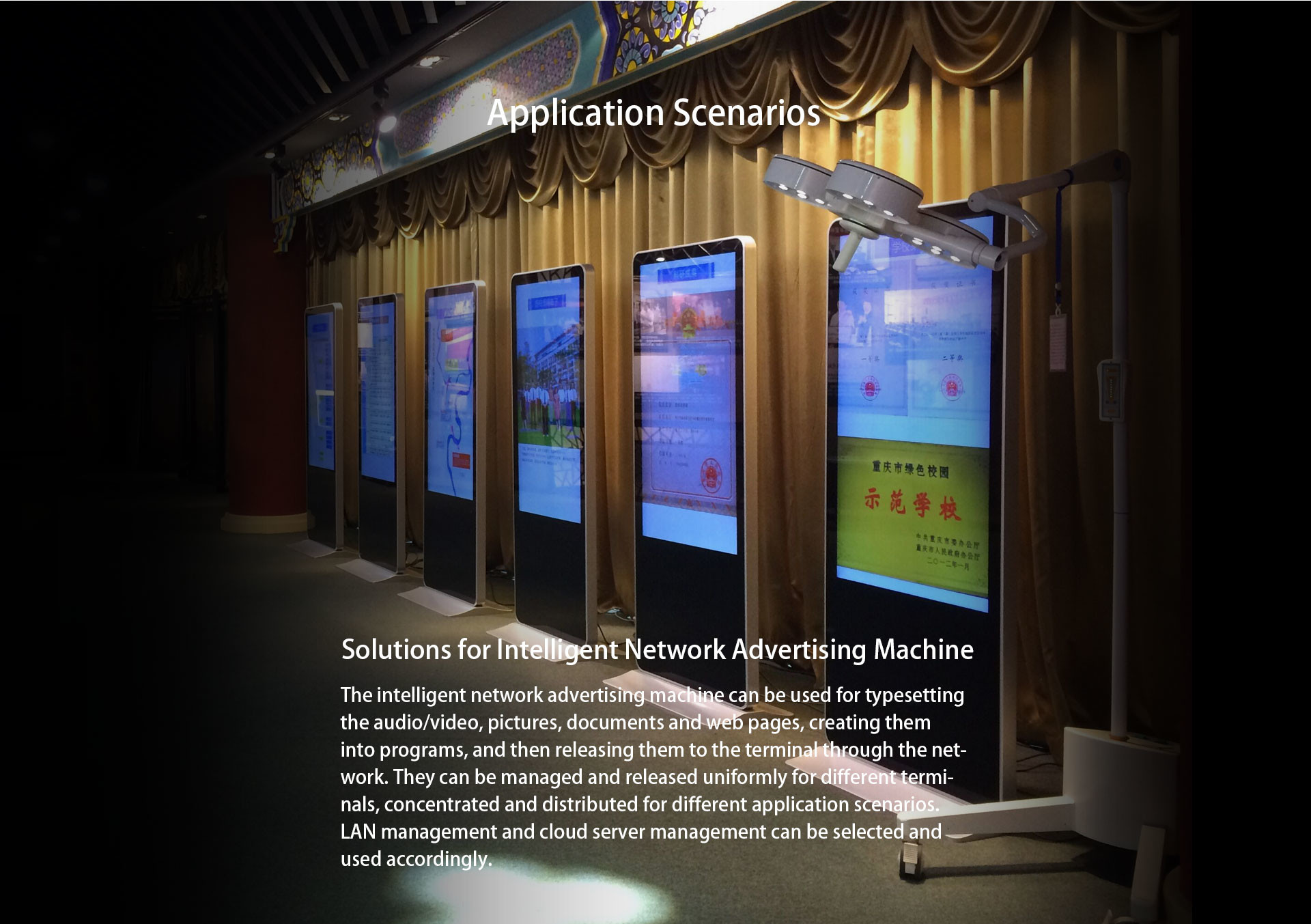

Wide Range of Applications: The M1 Smart Commercial Display Board is widely used in various fields such as smart retail, intelligent checkout, smart self-service devices, smart sharing devices, and smart access control.
Multiple Model Options: The M1 series offers a variety of smart motherboard models, such as YS-M8, YS-M1, YS-M99, YS-M98V, YS-M98L, YS-M68, YS-M9, YS-F68, etc., to meet the needs of different commercial display scenarios.
Android System Support: These motherboards support the Android operating system, enabling them to run a rich array of Android applications suitable for digital signage, smart self-service terminals, intelligent displays, new retail smart terminals, and building intercom scenarios.
Industrial Automation and Video Terminal Applications: The M1 series motherboards are not only suitable for commercial display terminals but also widely used in industrial automation terminals and video terminals.
Smart Display Terminals: The M1 Smart Commercial Display Board is particularly suitable for smart display terminals, offering powerful computing capabilities and a rich set of interfaces to support various commercial display needs.
Technology Integration: The M1 series motherboards integrate a variety of advanced technologies, including support for high-definition displays, robust processing power, and multiple connectivity options, making them an ideal choice for commercial display applications.
|
|
