H-3566 Smart HMI Motherboard RK3566,quad-core Cortex-A55,Clock up to 1.8GHz Standard 8GB EMMC
H-3566 Smart HMI Motherboard Description:
H-3566 adopts Rockchip RK3566, quad-core Cortex-A55 architecture processor,clock up to 1.8GHz, built-in neural network NPU, supporting 1Tops computing power, 8GB large RAM optional , compact design, suitable for Small smart self-service terminals, face verification equipment, welcome robots, edge computing and other scenarios.
H-3566 Smart HMI Motherboard Parameters:
Keyword: | Smart HMI Motherboard | CPU: | RK3566,quad-core Cortex-A55,Clock up to 1.8GHz |
|---|---|---|---|
| GPU: | Mali-G52 2EE | NPU: | Support 1Tops computing power |
RAM: | Standard 2GB LPDDR4, optional 4GB/8GB | ROM: | Standard 8GB EMMC, up to 128GB |

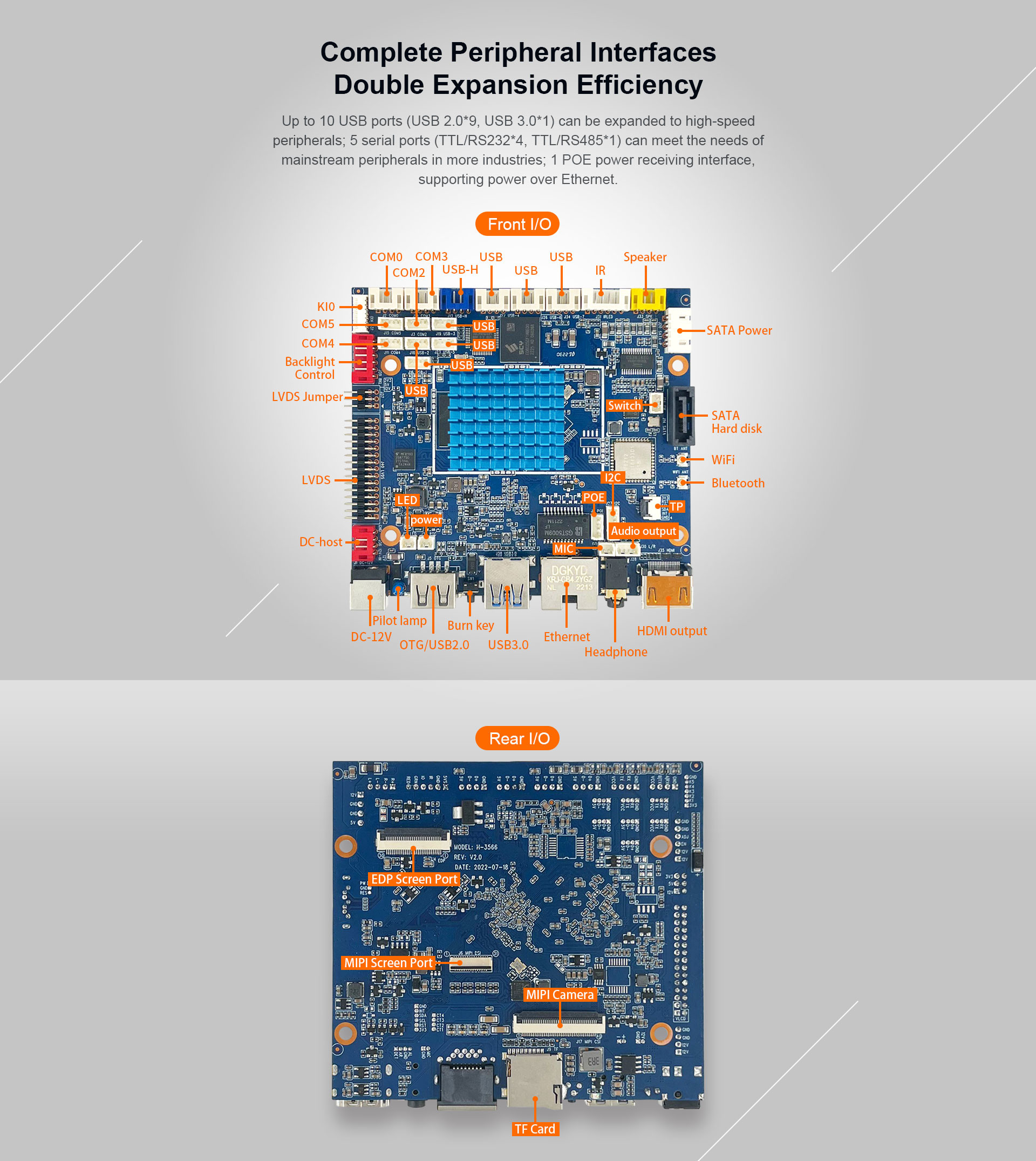

USB Host: | 2 external USBs (USB 2.0*1, USB 3.0*1). 8 built-in USB2.0 (1 of which is CPU pass-through USB) | Serial Port: | 4-way TTL/RS232 serial port, 1-way TTL/RS485 serial port |
| Headphone: | Four-stage 3.5mm headset socket, supports plugging headphones into the speaker to mute | HDMI: | HDMI 2.0 interface, supporting up to 4K resolution |
| MIPI: | 31Pin FPC MIP-DSIinterface, supporting up to 1920x1200 resolution | MIC Input: | Single-ended MIC input |
| Pilot lamp: | Green work indicator light | USB OTG: | 1 USB2.0 OTG interface |
Bluetooth: | High-performance Bluetooth, Support BT V5.2 | Android: | Recommend Android 11.0 |
H-3566 Smart HMI Motherboard Features:
Processor: A powerful Rockchip RK3566 quad-core Cortex-A55 processor, offering high performance for various HMI applications.
Graphics: Integrated GPU capable of supporting high-resolution displays and providing smooth graphics for UI interactions.
Display Outputs: Multiple display output options, such as HDMI, LVDS, or eDP, to connect to various types of screens.
Memory: Support for DDR4 RAM, allowing for fast and efficient operation, with options for different capacities to suit various needs.
Storage: Onboard eMMC storage for the operating system and applications, with options for different sizes.
Connectivity: Gigabit Ethernet for wired network connectivity, Wi-Fi, and Bluetooth for wireless communication.
USB Ports: Multiple USB ports for connecting peripherals such as keyboards, mice, barcode scanners, or other input/output devices.
Expansion Slots: Possibly mini PCIe or M.2 slots for additional expansion, such as adding a 4G/5G module or an additional Wi-Fi card.
I/O Interfaces: RS-232 and RS-485 serial ports for industrial communication, along with GPIO pins for custom interfacing.

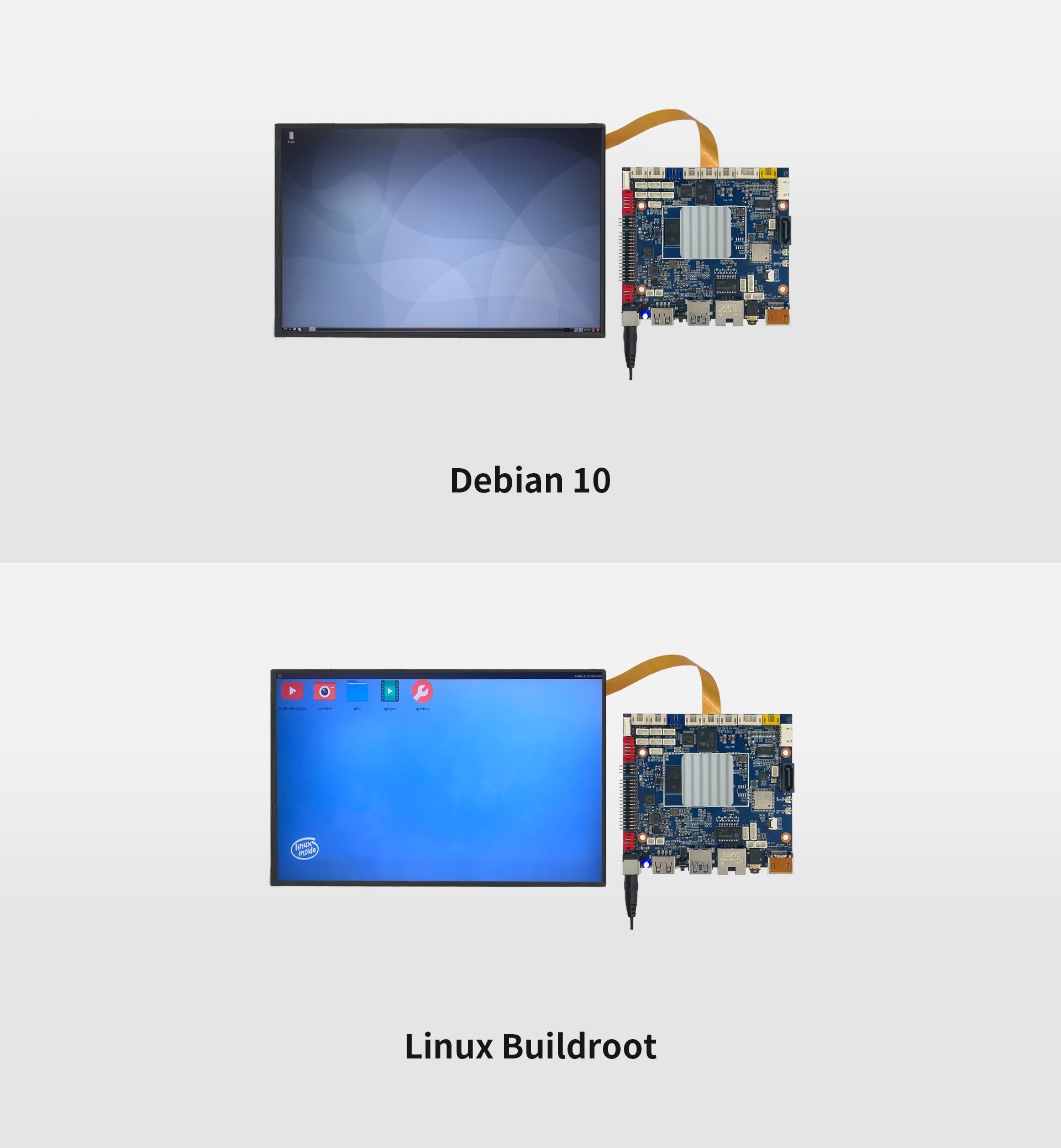

Operating System Support: Support for various operating systems, including Linux and Android, tailored for HMI applications.
Industrial-Grade Design: Designed to withstand harsh environments, with wide temperature range support and robust construction.
Power Management: Efficient power management features to ensure low power consumption and long-term reliability.
Security Features: Potential support for hardware-based security features, such as TPM, for secure boot and data protection.
Certifications: Compliance with industry standards and certifications, such as CE, FCC, and UL, ensuring safety and reliability.
Customization: Options for customization to meet specific application requirements, such as specific I/O configurations or additional processing capabilities.
|
|
