H-3399 Smart HMI Motherboard Quad Core Mali-T860 Standard 16GB EMMC 2 external USB3.0

H-3399 Smart HMI Motherboard Description:

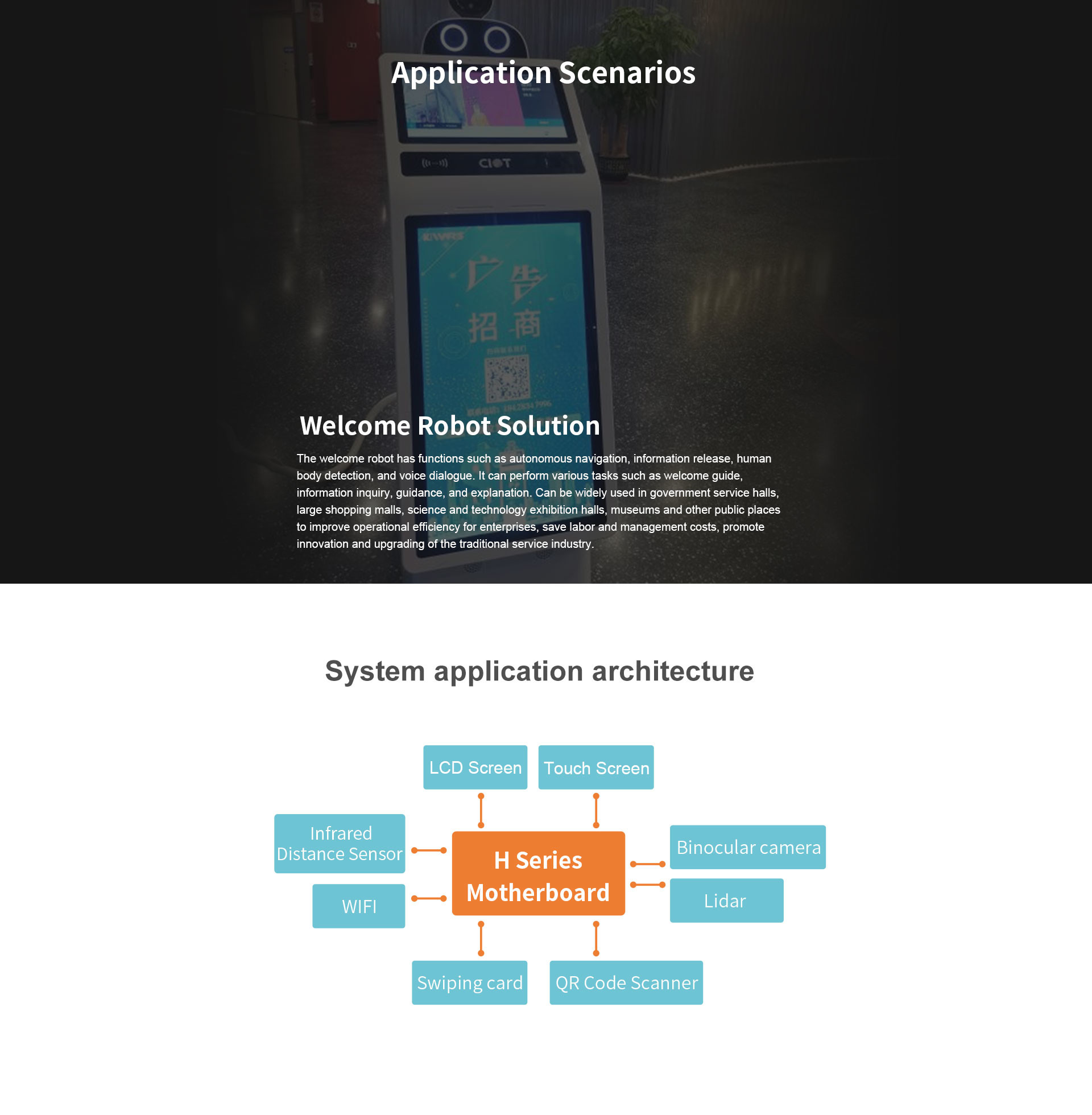

H-3399 is based on Rockchip RK3399 processor. It has powerful performance, rich interfaces and powerful computing performance. It can be easily applied to scenarios such as welcome robots, face detection recognition and industrial control equipment.

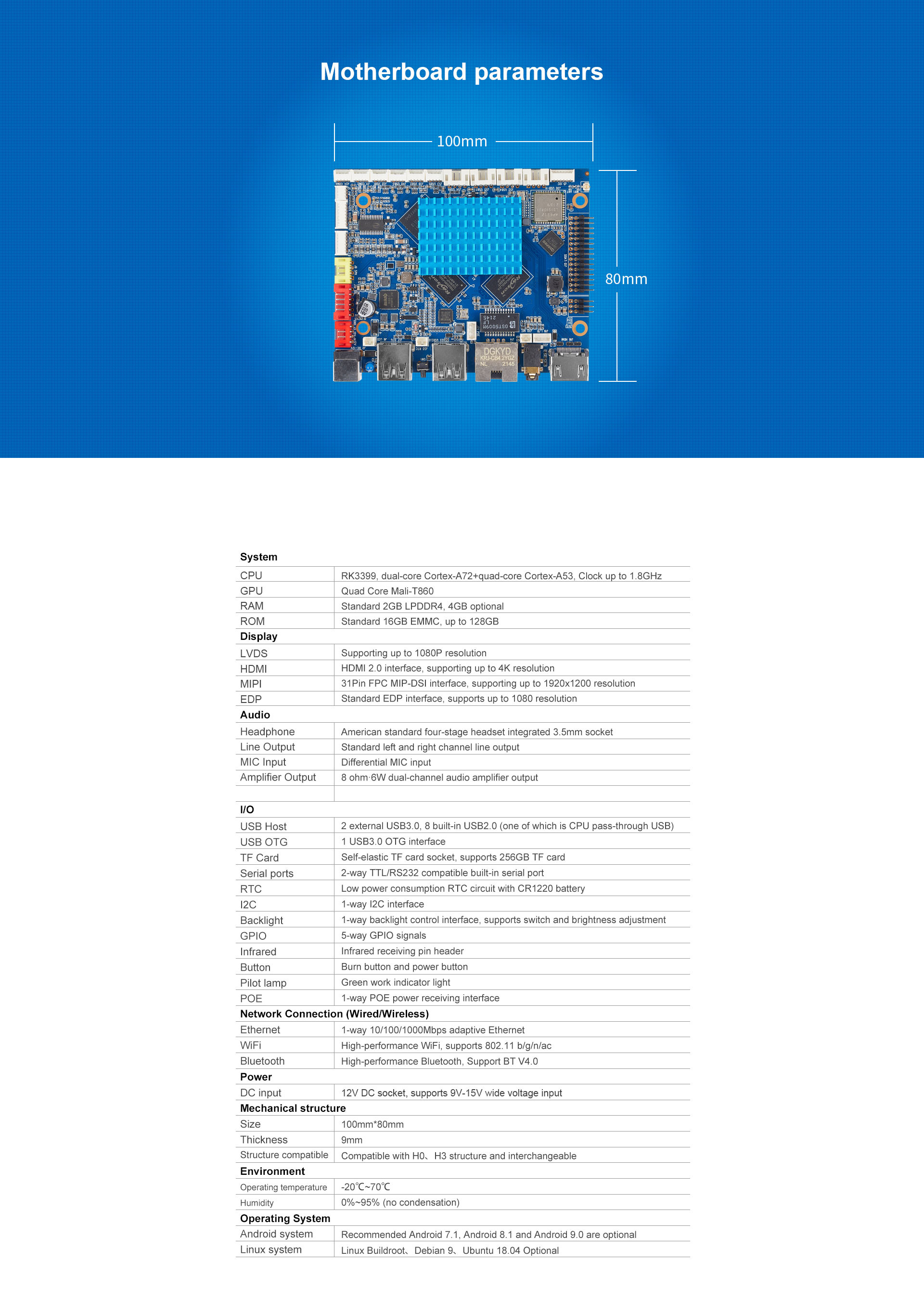

H-3399 Smart HMI Motherboard Parameters:

H-3399 Smart HMI Motherboard Features:

1. Processor: Equipped with a Rockchip RK3399 processor, featuring an ARM Hexa-core CPU (dual Cortex-A72 + quad Cortex-A53), with a clock speed up to 1.8GHz.

2. Display Support: Integrated LVDS and MIPI display support, capable of up to 1080P resolution. Supports dual display output with four display interfaces (LVDS, eDP, MIPI, HDMI), and supports dual-screen different display and dual-screen same display functions.

3. Wireless Connectivity: Features WiFi 802.11 b/g/n/ac and Bluetooth V5.2, supporting dual-band WiFi at 2.4GHz/5GHz.

4. USB Interfaces: Provides 2 external USB3.0 and 8 internal USB2.0 interfaces.

5. Power Input: Supports a wide voltage DC power input of 9V-15V.

6. Memory and Storage: Supports up to 4GB RAM and 128GB ROM.

7. Video Output: HDMI 2.0 supports up to 4K output.

8. Serial Communication: Offers 2 TTL/RS232 compatible serial ports.

9. Ethernet Interface: Provides 1 Gigabit Ethernet interface and 1 POE power supply interface.

10. Design: Ultra-thin design with a thickness of only 9mm and dimensions of 100mm x 80mm.

11. Graphics Processing: Utilizes Mali-T860 GPU, supporting 1080P, H265/H264 video decoding, with an overall performance increase of 45% compared to the previous generation.

12. Operating System: Supports Android 7.1 system, with customization options for Linux, Ubuntu systems.

13. Expansion Interfaces: Rich expansion interfaces, including UART, ADC, I2C, GPIO, and support for RS232 and RS485 interfaces.

14. Touch Support: Perfectly supports various mainstream touch screen functions, such as multi-point infrared touch, multi-point capacitive touch, etc.
