C4 Smart Minicomputer Board Compatible and interchangeable between models C0/ C3/ C4

C4 Smart Minicomputer Board Description:
The C4 board adopts the Rockchip RK3399 processor, integrated dual-core Cortex-A721.8GHz processor and quad-core Cortex-A531.4GHz processor. Its integrated Mali-T860 graphics processing unit (GPU) supports OpenGL ES 1.1/2.0/3.0/3.1 and can achieve 4K and 1080P hardware video decoding, respectively. Various onboard display and expansion interfaces are available for secondary development of openAPI SDK, which can be quickly used in various industries.

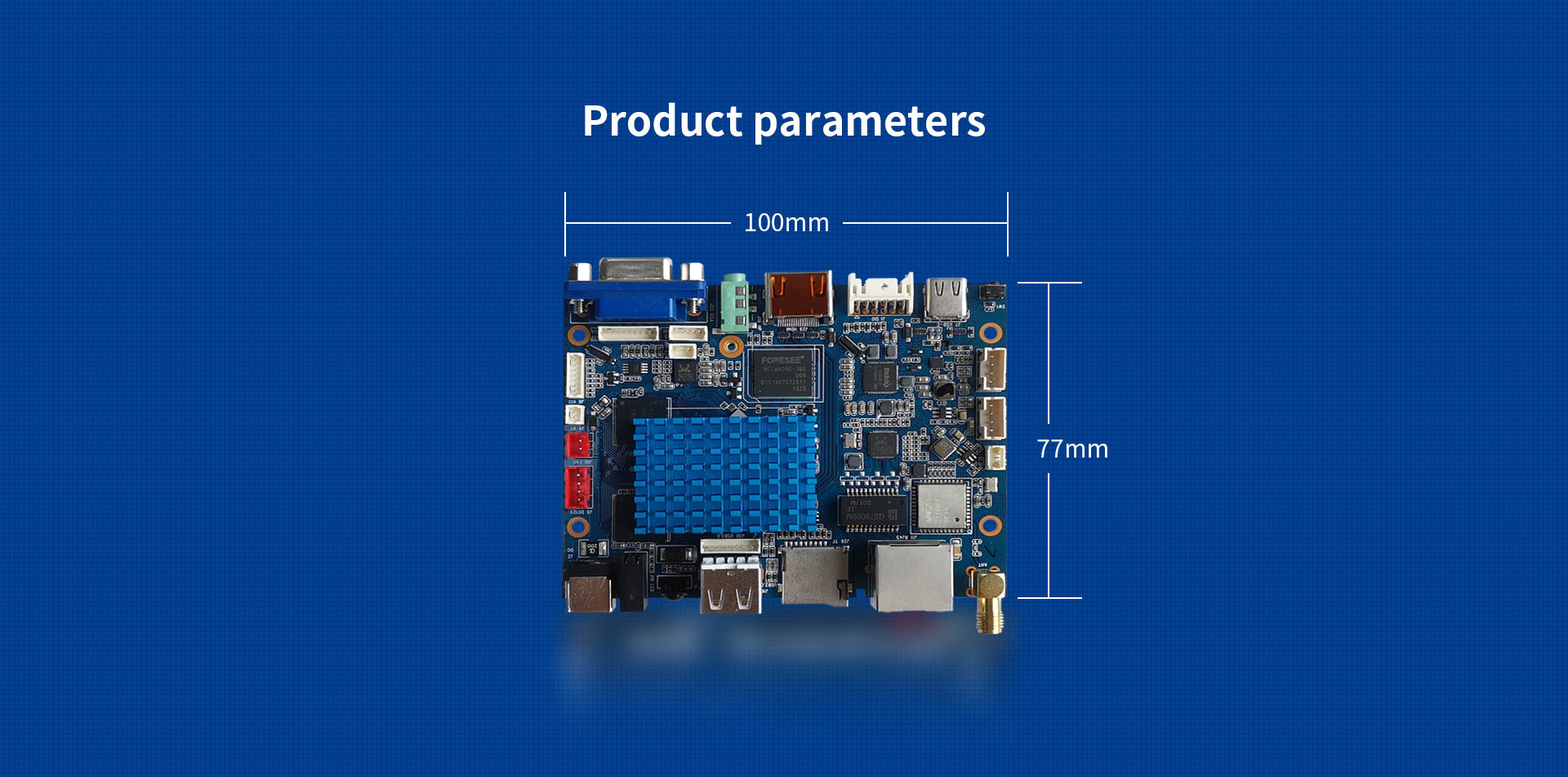

C4 Smart Minicomputer Board Parameters:

C4 Smart Minicomputer Board Features:

1. Advanced CPU: The ODROID-C4 is equipped with the Amlogic S905X3 CPU, which includes a quad-core Cortex-A55 cluster that runs stably at 2.0GHz without thermal throttling, thanks to an efficient heatsink.

2. Enhanced Multi-Core Performance: Compared to the ODROID-C2, the ODROID-C4 offers approximately a 40% increase in multi-core performance, ensuring smoother execution of tasks and applications.

3. Improved System DRAM Performance: The system DRAM performance of the ODROID-C4 is 50% faster than its predecessor, which means quicker data access and overall response times.

4. Graphics Processing: It features an ARM Mali™-G31 MP2 GPU, supporting OpenGL ES 2.0/1.1 for Linux and Android, and supports HDMI 2.0 4K/60Hz display.

5. Storage: Supports eMMC5.0 HS400 Flash storage slot and UHS-1 SDR50 MicroSD slot.

6. Network Connection: Offers Gigabit Ethernet connectivity.

7. I/O Connections (Additional): Provides 4 USB 3.0 host interfaces, 1 USB OTG interface, an infrared (IR) receiver, and 40pin GPIOs.

8. Input Power: Supports 5.5V to 15.5V DC input (a separate power adapter is required).

9. Package Contents: Includes the ODROID-C4 mainboard.
