| Brand Name : | Shi Zun |
| Model Number : | HK5M-H170 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100+pcs+day |
| Delivery Time : | 10 working days |

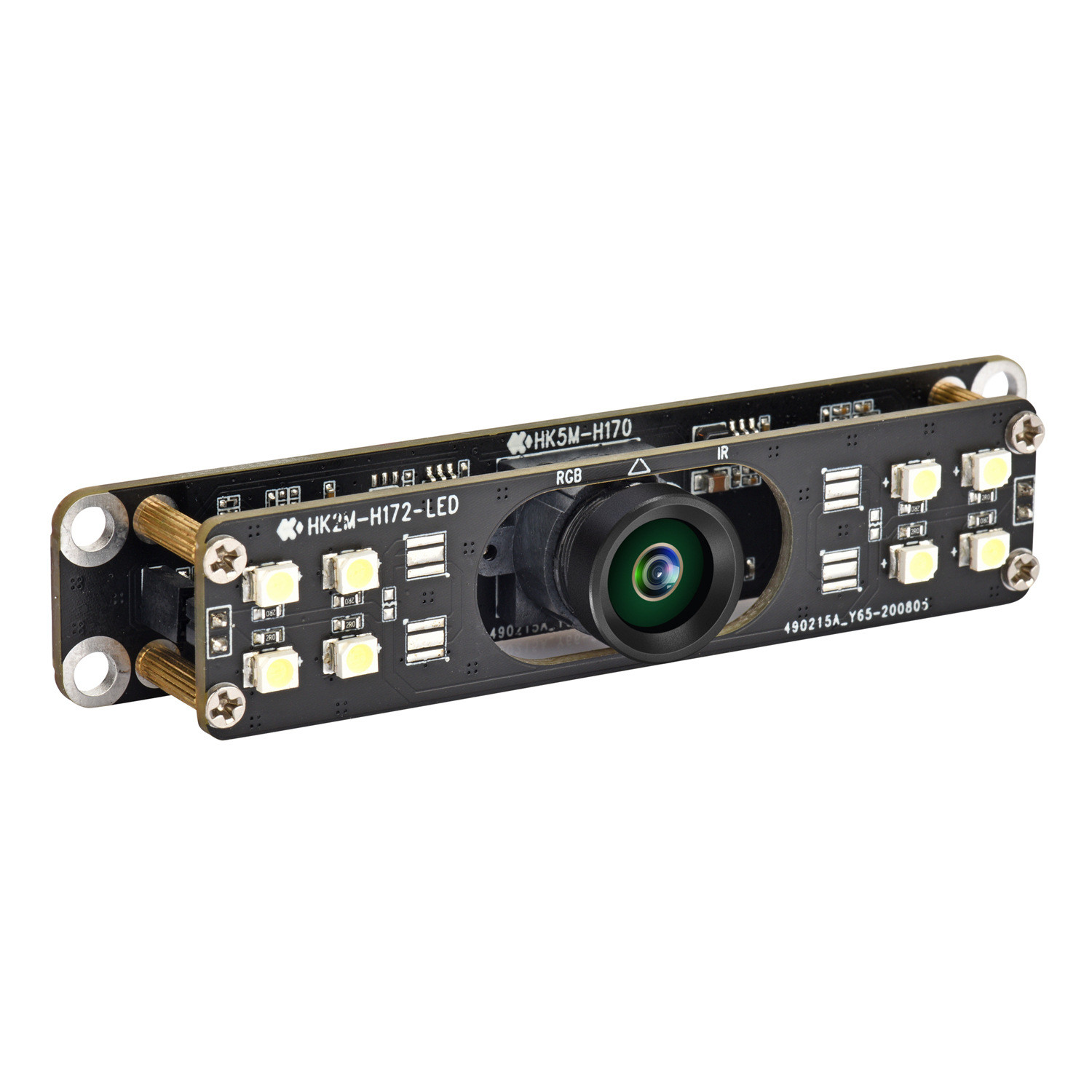

HK5M-H170 Wide Dynamic Range 5-Megapixel High Definition Camera Module USB Driver-Free Industrial Module
HK5M-H170 Wide Dynamic Range Camera Module Features:
HK5M-H170 Wide Dynamic Range Camera Module Parameter:
| Connect the interface: | 1* USB-5pin-1.0mm |
| Interface speed: | 480mb/s |
| Maximum resolution and frame rate: | 2592* 1944 (30ps) |
| Other optional resolution ratio: | 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1920*1080(30fps), 1600*1200(30ps), 2048* 1536(30fps), 2560* 1440(30fps) |
| Support format: | YUV/ MJPG |
| Max Dynamic Range | 110dB |
| F/No: | 2.0 |
| EFL: | 3.0mm |
| FOV: | 90° |
| Lens Construction: | 2G4P+IR |
| Power Consumption: | Regular work: 1.4W |
| Operating systemrequest: | WinXP, Win7, Linux or Vista and android4.1 |
|
|
