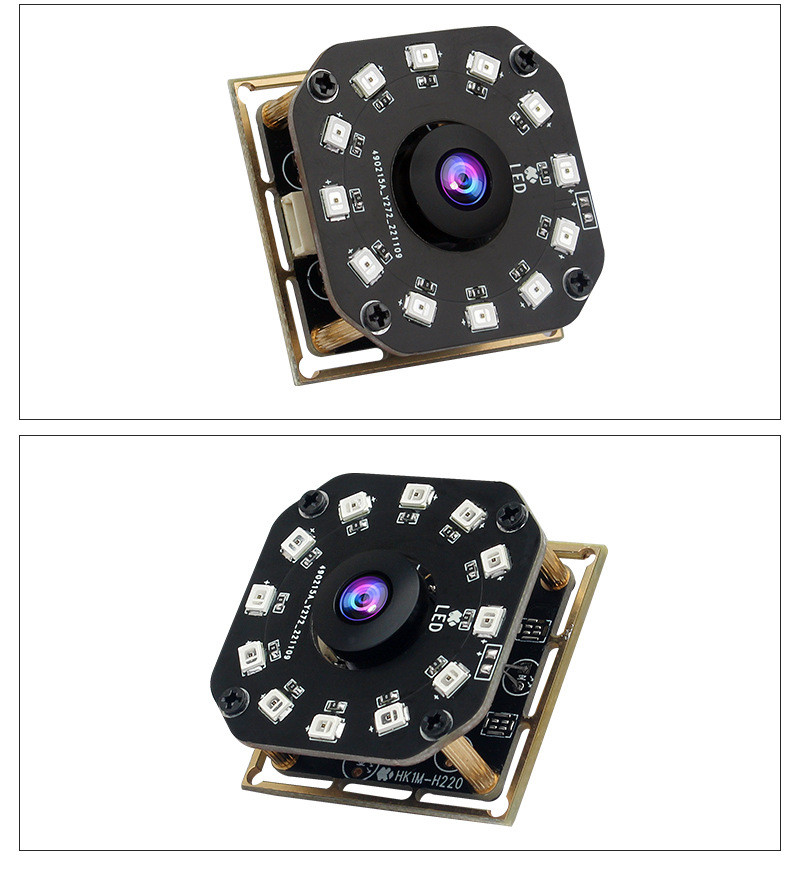

HK1M-H220 Global Shutter 120FPS 1080P High-Frame Camera Module with Wide-Angle Lens for Iris and Vein Recognition

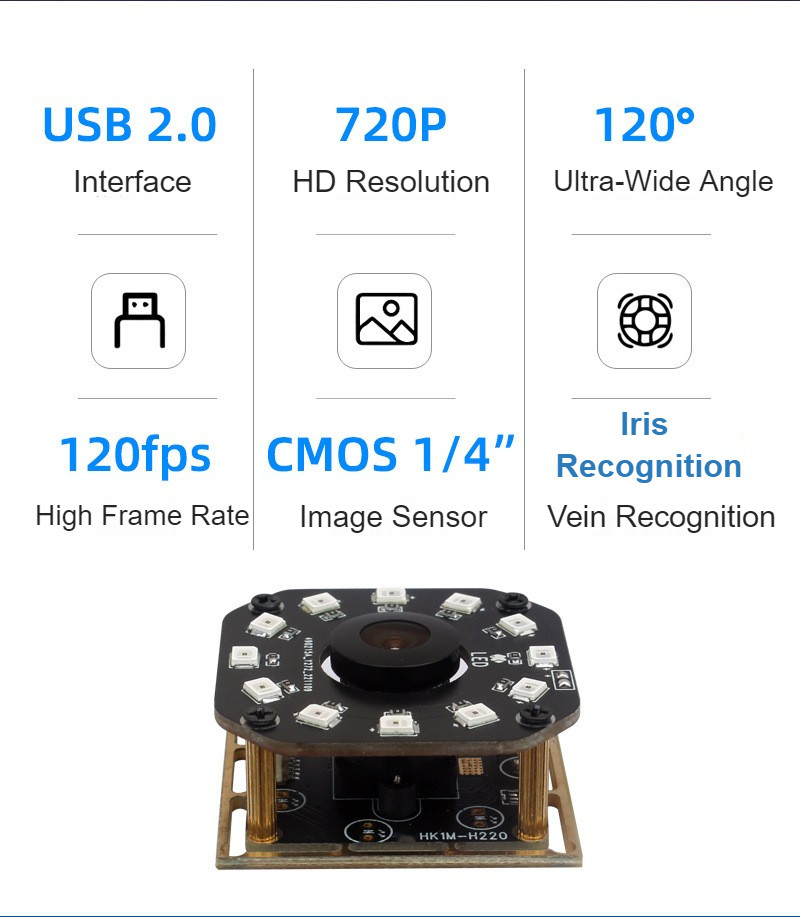

HK1M-H220 Camera Module Features:
HK1M-H220 Camera Module Parameter:
| Pixel Size: | 3.0μm x 3.0μm |
| Minimum illumination: | 0.1Lux at F12 |
| F/No: | 2.4 |
| EFL: | 2.65mm |
| FOV: | D120° |
| Maximum Resolution and Frame Rate: | 1280 * 800 (120fps) |
| USB Power Supply Voltage: | 5V±5% |
| Connect the Interface: | 1 * USB-5pin-1.0mm |
| Interface Speed: | 480mb/s |
| Operating System Request: | Windows XP / VISTA / Win7 / Win8 / Win10 / Linux 2.6.24 and above, Ubuntu, Mac OS10.6 and above, Android 5.1and above |
| Power Consumption: | Regularwork : 1.5W (with light) |
| Working Temperature: | -30°C to +80°C |
| Structure Size: | 38mm x 38mm x 18m |
|
|
