| Ask Lasest Price | |
| Brand Name : | Shi Zun |
| Model Number : | JP-02H205 |
| Price : | Negotiable |
| Supply Ability : | 100+pcs+day |
| Delivery Time : | 10 working days |
| Payment Terms : | T/T |

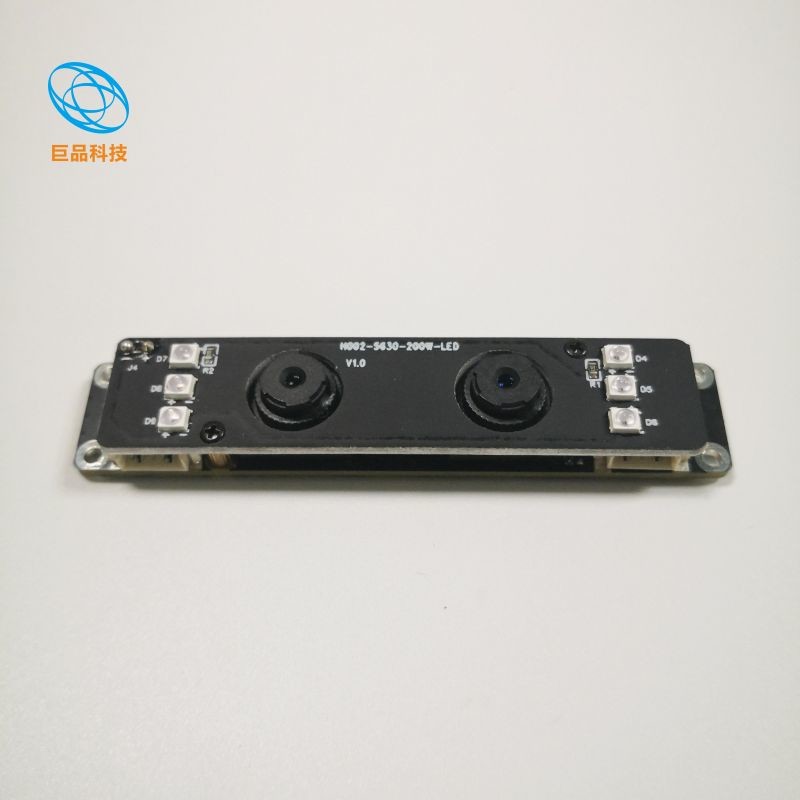

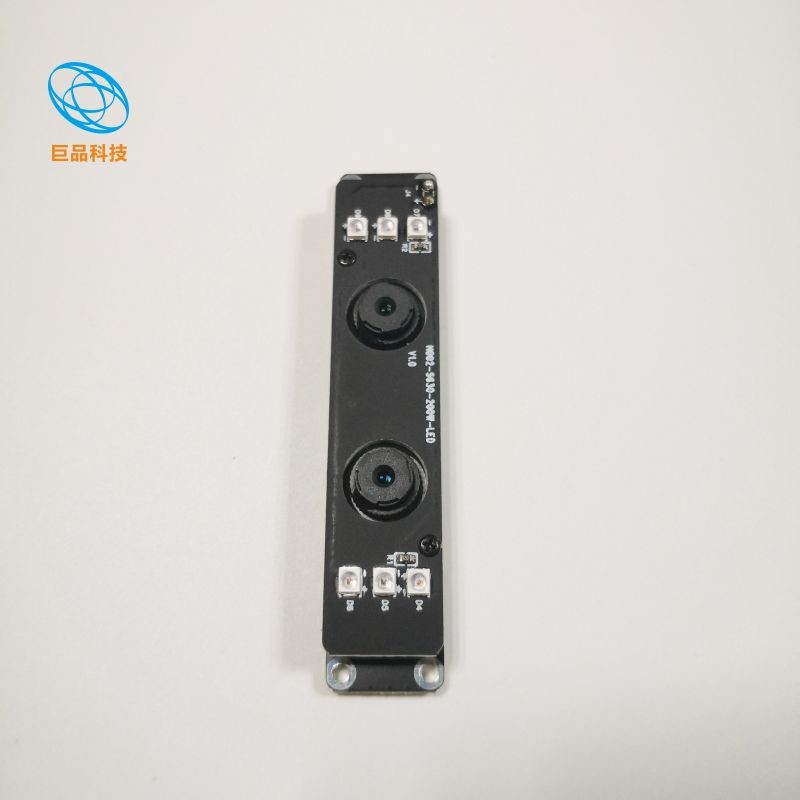

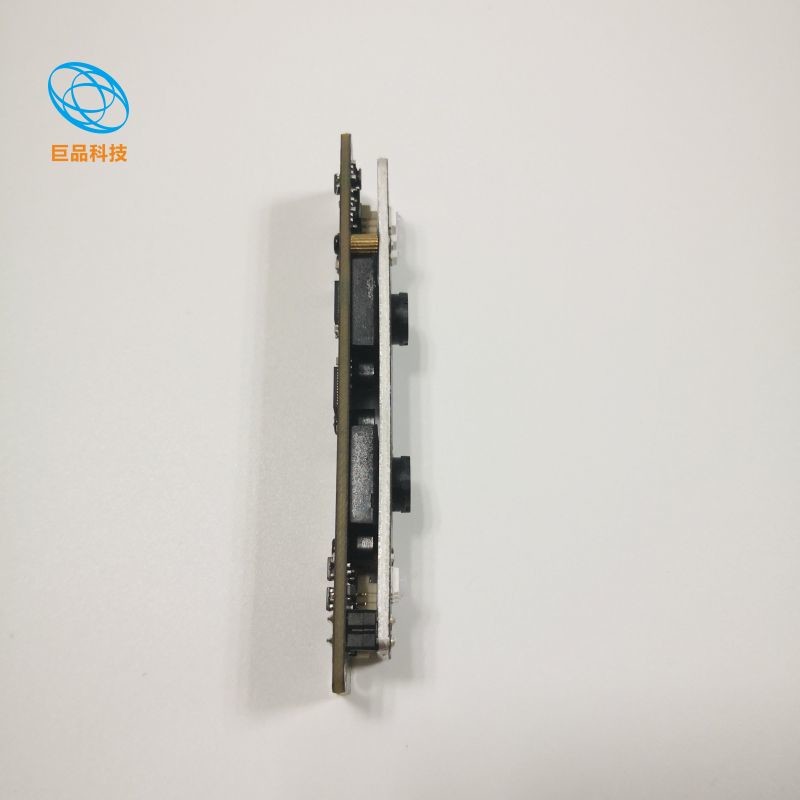

JP-02H205 Dual-Lens Hardware Wide Dynamic Range Camera Module Maximum Video Frame Rate 30fps at 1080P
JP-02H205 Wide Dynamic Range Camera Module Introduction:
High-quality color photo imaging at SXGA resolution and video
capabilities can now be easily integrated into next-generation
products with low power consumption and low noise requirements
using the XCX-02H205 camera module.
The module outputs image data through a high-speed USB 2.0
interface.
With advanced packaging technology (special patent), this module achieves high reliability in a compact size. It also offers a wide dynamic range by implementing high sensitivity and low noise performance.
JP-02H205 Wide Dynamic Range Camera Module Features:
Supports output formats: SXGA, VGA, QVGA, CIF, QCIF, QVGA, and QCIF
Additional functionalities:
JP-02H205 Wide Dynamic Range Camera Module Parameter:
| Optical Size: | 1/2.7” CMOS sensor |
| Pixel Size: | 3μm x 3μm |
| Max. Capture Frame Rate: | 10fps at full resolution, 25fps at 1080P, 30fps at 720P |
| LENS (IR): | 650nm / 850nm |
| LED IR (Infrared Light): | 850nm |
| Maximum Video Frame Rate: | 30fps at 1080P |
| Focusing Distance: | Fixed (60 cm) |
| Interface: | USB 2.0 |
| Power Supply: | DC 5V |
| Operating Temperature: | -20℃to +70°C |
| Operating System Requirements: | Windows XP, Windows Vista, Windows 7, Android |
| Maximum Pixel Rate: | 30MP/s |
|
|
