| Brand Name : | Shi Zun |
| Model Number : | JP-1080P-H-V7.0 |
| Price : | Negotiable |
| Supply Ability : | 100+pcs+day |
| Delivery Time : | 10 working days |
| Payment Terms : | T/T |

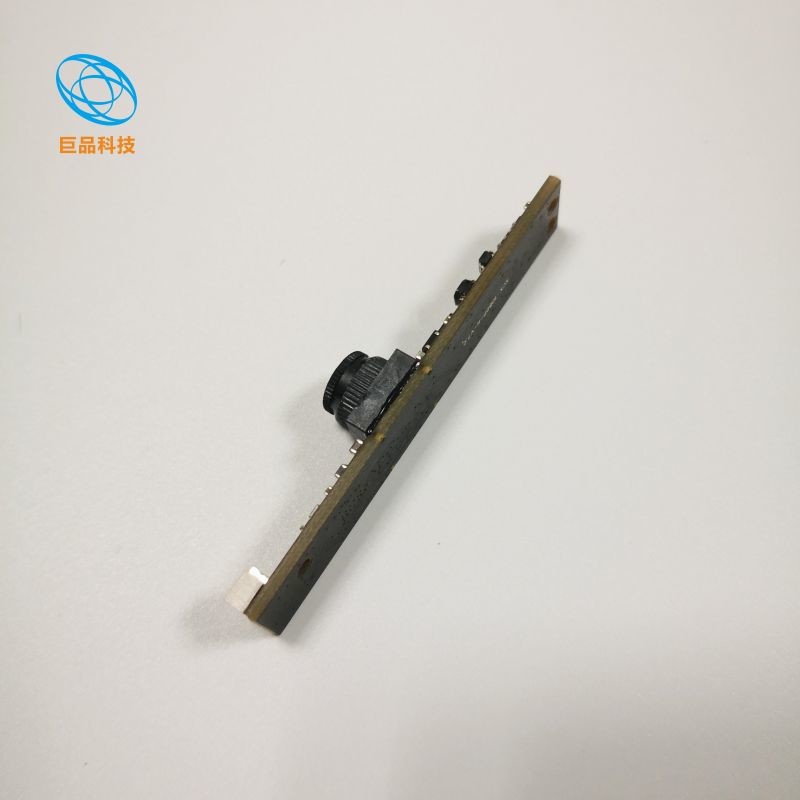

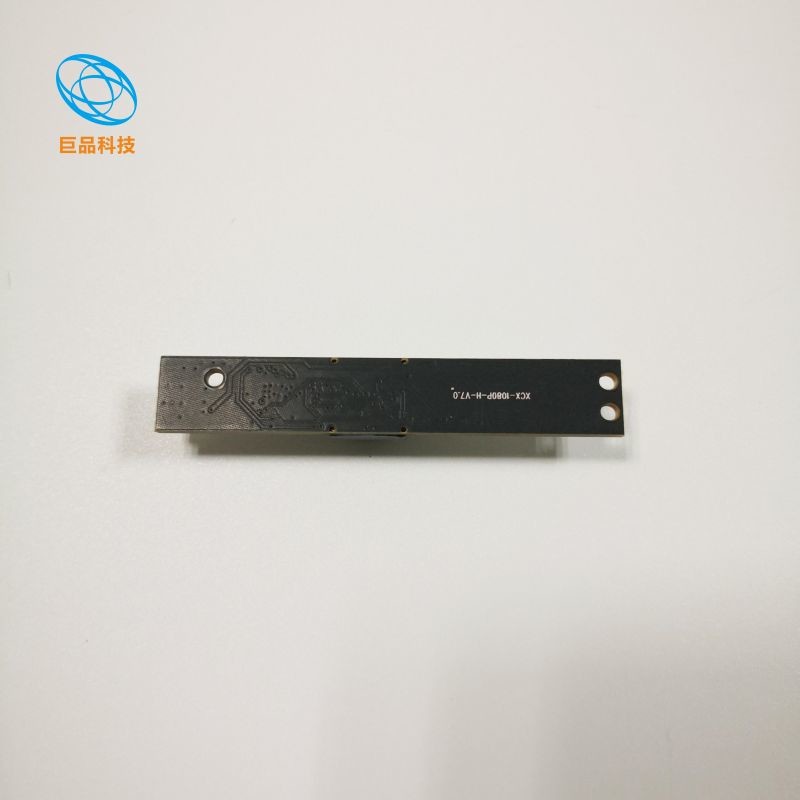

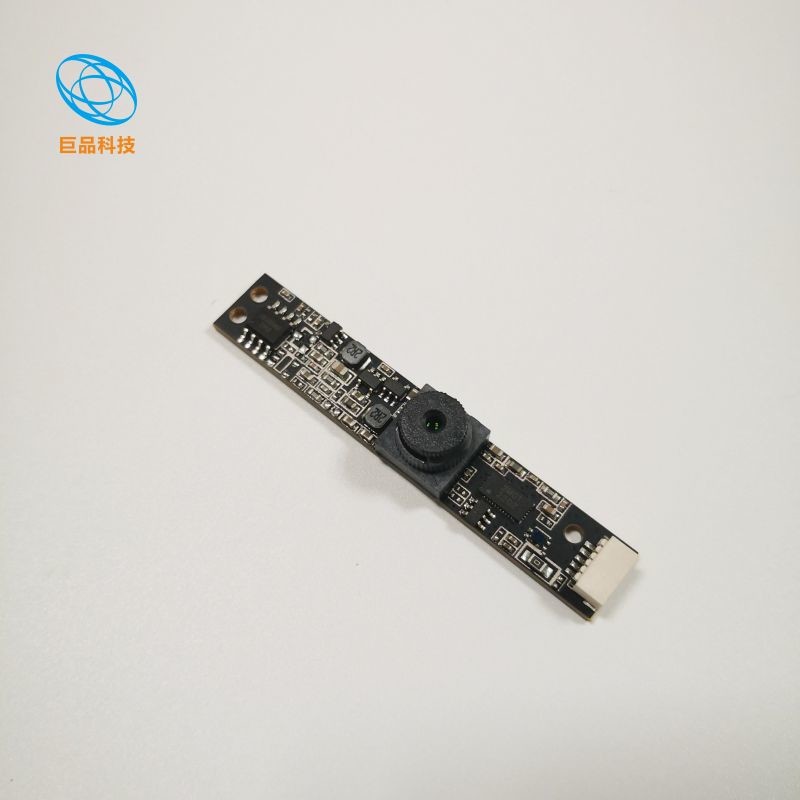

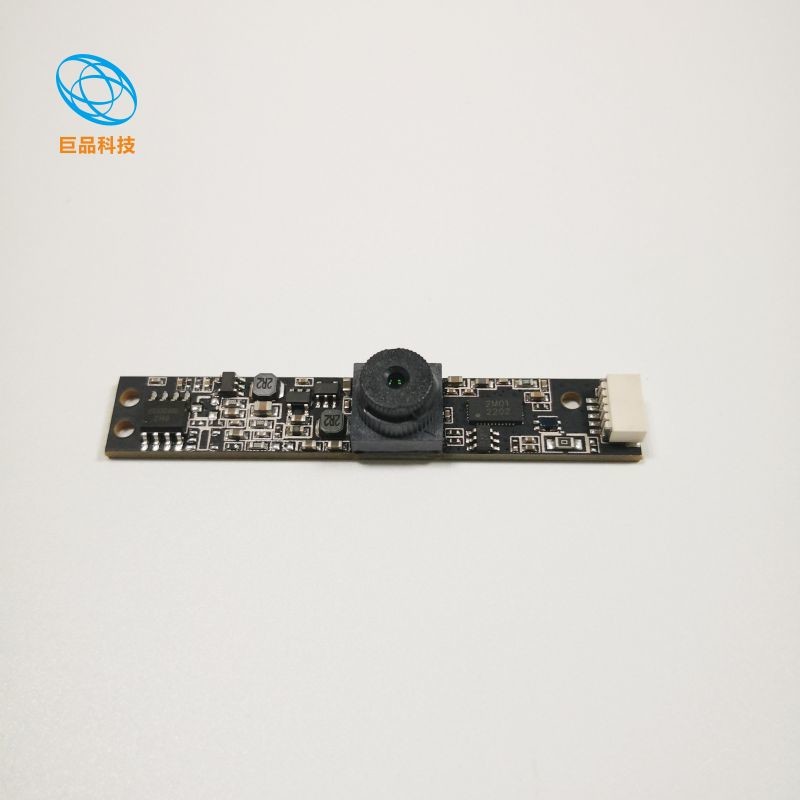

JP-1080P-H-V7.0 Wide Dynamic Range Camera Module Maximum Video Frame Rate 25fps at 1080P Interface: USB 2.0
JP-1080P-H-V7.0 Wide Dynamic Range Camera Module Introduction:
High-quality color photo imaging at SXGA resolution and video
capabilities can now be easily integrated into next-generation
products requiring low power consumption and low noise with the new
XCX-1080P-H-V7.0 camera module.
The module outputs image data through a high-speed USB 2.0
interface.
With advanced packaging technology (special patent), it achieves high reliability in a compact size. It also features a wide dynamic range by implementing high sensitivity and low noise performance.
JP-1080P-H-V7.0 Wide Dynamic Range Camera Module Features:
Additional functionalities:
JP-1080P-H-V7.0 Wide Dynamic Range Camera Module Parameter:
| Optical Size: | 1/2.7” CMOS sensor |
| Pixel Size: | 3μm x 3μm |
| Max. Capture Frame Rate: | 10fps at full resolution, 25fps at 1080P, 60fps at 720P |
| Maximum Video Frame Rate: | 25fps at 1080P |
| Focusing Distance: | Fixed (60-80 cm) |
| Interface: | USB 2.0 |
| Power Supply: | DC 5V |
| Operating Temperature: | -10°C to +60°C |
| Operating System Requirements: | Windows XP, Windows Vista, Windows 7, Android |
| Maximum Pixel Rate: | 30MP/s |
|
|
